The OSI Model Explained

The Open Systems Interconnection (OSI) model is a conceptual framework that standardizes the functions of a telecommunication or computing system into seven distinct layers. It provides a universal language for network functionality, allowing different systems to communicate seamlessly.

Understanding the Seven Layers

Imagine sending a letter: you write it, put it in an envelope, address it, and it gets transported. Network communication works similarly, but with seven "envelopes" or layers, each adding specific information.

Layer 7: Application Layer

This layer is closest to the end-user. It provides network services to applications, such as web browsers or email clients. For example, when you type "Hello" in a chat application, this layer initiates the process.

Layer 6: Presentation Layer

This layer handles data formatting, encryption, and compression. It ensures that data is in a format the receiving application can understand. For instance, it might specify that "Hello" is plain text.

Layer 5: Session Layer

The session layer manages communication sessions between applications. It establishes, maintains, and terminates connections, ensuring that the correct data goes to the correct application.

Layer 4: Transport Layer

This layer is responsible for end-to-end communication between devices. It segments data, adds port numbers (e.g., Port 80 for HTTP), and ensures reliable delivery, often using TCP or UDP protocols. The message "Hello" would be segmented and assigned a port here.

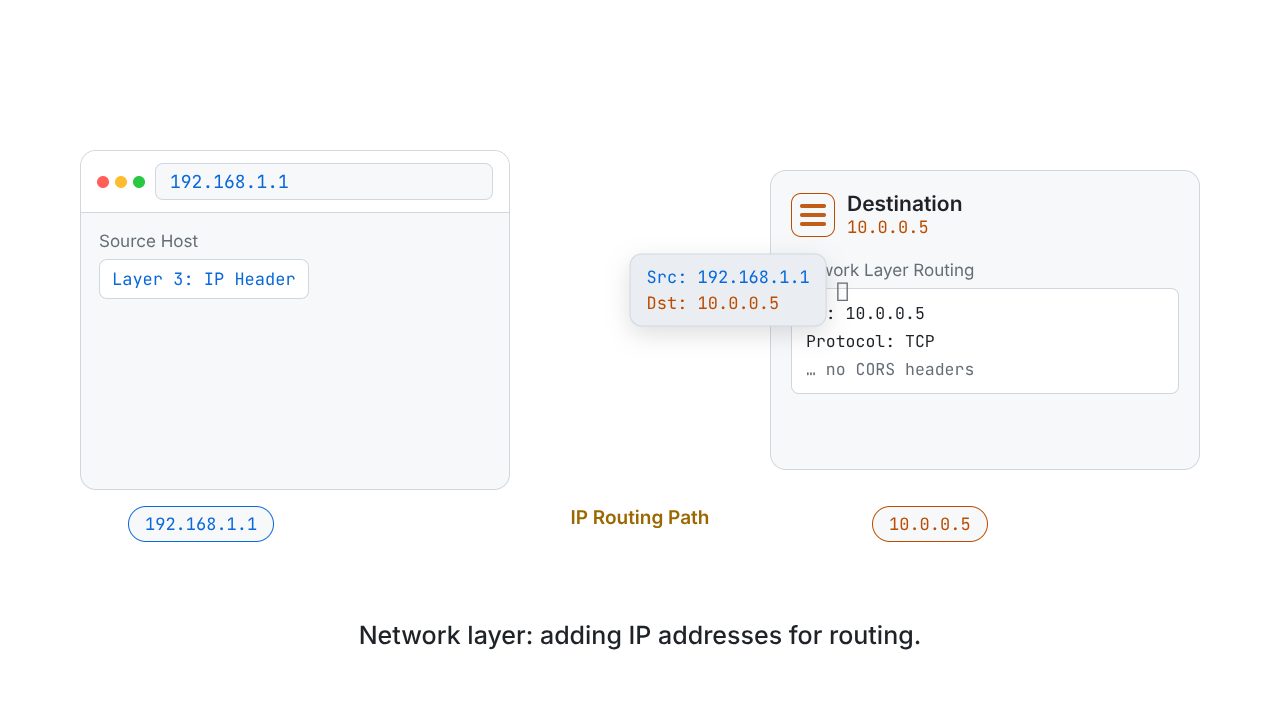

Layer 3: Network Layer

The network layer handles logical addressing (IP addresses) and routing. It determines the best path for data to travel across different networks. An IP address like `192.168.1.1` is added at this stage.

Layer 2: Data Link Layer

This layer provides node-to-node data transfer and handles physical addressing (MAC addresses). It encapsulates network layer packets into frames and adds MAC addresses (e.g., `AA:BB:CC`) for local network delivery.

Layer 1: Physical Layer

The physical layer defines the electrical and physical specifications for devices. It converts data frames into raw bitstreams (1s and 0s) for transmission over physical media like cables or Wi-Fi signals.

Data Encapsulation and Decapsulation

As data travels down the layers on the sender's side, each layer adds its own header or trailer, encapsulating the data from the layer above. This process is reversed on the receiver's side: each layer peels off its corresponding header, eventually delivering the original data to the application layer. This modular design allows different technologies to evolve independently while maintaining interoperability.

Key Takeaways

• The OSI model organizes network communication into seven distinct layers.
• Each layer has a specific, well-defined function.
• Data is encapsulated with headers as it moves down the layers on the sender side.
• The receiver decapsulates data by processing layers in reverse order.
• This layered approach promotes interoperability and independent technological evolution.
